7 Best AI Diagramming Tools for Engineers in 2026

Every engineering team eventually faces the same problem: architecture diagrams that live in Confluence, are six months stale, and nobody remembers updating. AI-powered diagramming tools have made real progress on this. The better ones produce a sequence diagram from a text description, keep diagrams in version control as code, or scan your actual cloud infrastructure and draw it for you. The weaker ones bolt a "Generate with AI" button onto a drag-and-drop canvas and call it a day.

I tested seven tools across the categories developers actually use: system architecture, API sequence flows, ER diagrams, cloud infrastructure, and UX flowcharts. Here's what I found.

What Matters When Evaluating These Tools

Marketing pages all claim "generate beautiful diagrams in seconds." The questions worth asking are more specific:

• Does the AI produce diagram-as-code (versionable in Git) or a pixel canvas you can't diff?
• Which diagram types are supported - sequence, ERD, BPMN, cloud, UML?
• Does the tool understand cloud provider components or just generic shapes?
• Can it read existing code or infrastructure and generate diagrams from that?
• What happens to your data - is it used to train the model?

On that last point: Eraser explicitly states it does not train AI models on user data. draw.io's AI features send your prompt to third-party APIs, which they disclose. The others have varying privacy terms worth reading before you paste internal architecture into a chat prompt.

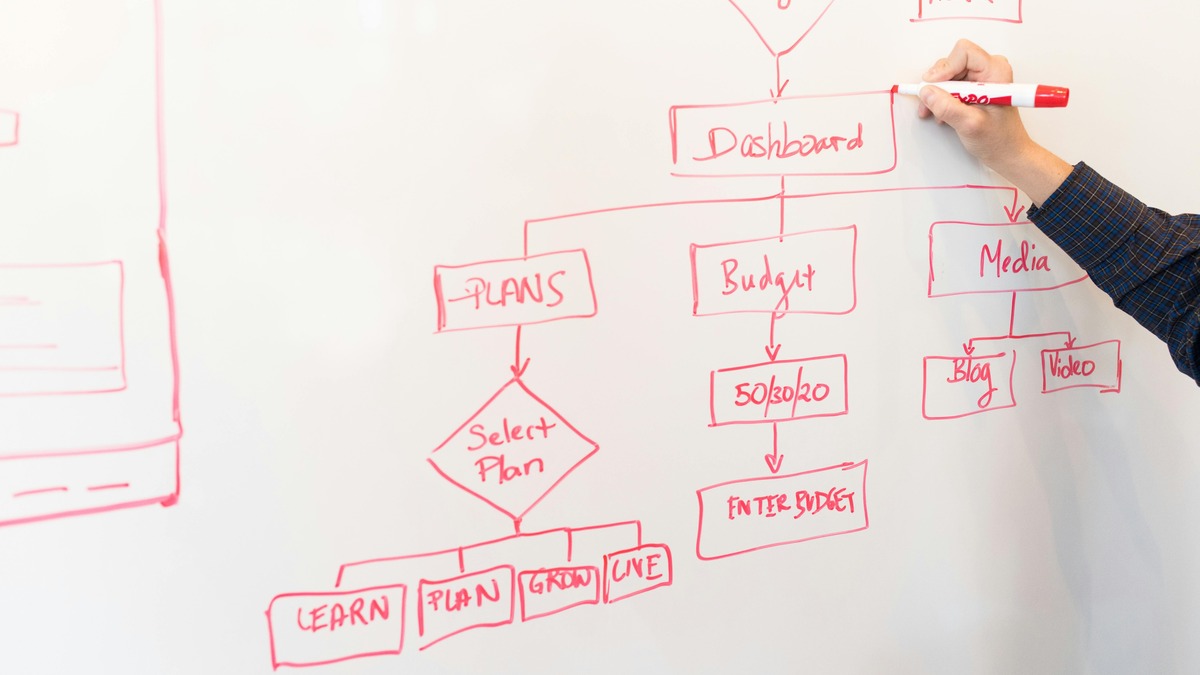

The old way: markers on whiteboards. The new tools aim to keep diagrams alive in code repositories instead. Source: pexels.com

Eraser - Best for Engineering Teams

Eraser is built from the ground up for technical teams. A typical Eraser workspace has a markdown document on one side and a diagram on the other - both in the same file, both version-controlled together. The AI generation is backed by diagram-as-code: you describe your system in plain English or paste code, and Eraser outputs editable syntax rather than a locked image.

Supported diagram types include flow charts, entity relationship diagrams, cloud architecture diagrams, sequence diagrams, and BPMN diagrams. The GitHub integration is real - you can trigger a PR from Eraser, and the diagram code lives alongside the technical spec doc rather than in a separate tool.

Eraser pricing

The free plan's 5-generation cap is tight for a team doing active design work. The Starter plan at $15/month covers most individual engineers. The Business plan's 250 monthly generations should handle a full team.

What it's not good at: Eraser doesn't have a freeform canvas for brainstorming. If you want sticky notes and workshop exercises, you're in the wrong tool. It's a documentation tool with AI, not a whiteboard.

Mermaid Chart - Best for Code-First Documentation

Mermaid has been the developer's diagramming syntax of choice for years - it renders directly in GitHub Markdown and dozens of wikis. Mermaid Chart is the cloud product built on top of it, adding AI generation, real-time collaboration, and a VS Code plugin that keeps diagrams next to your code.

The AI layer accepts natural language prompts and outputs Mermaid syntax, which means your diagram is always a text file you can store in Git, review in a pull request, and diff. The open-source library's ecosystem is massive - integrations with Notion, GitLab, Confluence, and more exist and are maintained by the community.

Mermaid Chart pricing

The free tier's three-diagram limit pushes you to the Pro plan fairly quickly. At $80/year ($6.67/month) it's the cheapest paid option in this comparison. The main limitation is diagram complexity - deeply nested or very large diagrams can become hard to maintain in Mermaid syntax, especially ERDs with many relations.

Best use case: Technical documentation written by developers who want diagrams that behave like code. If your engineering team already writes README files with Mermaid blocks, the Cloud product adds AI generation and collaboration on top of a workflow they already own.

draw.io - Best Free Option

draw.io (also known as diagrams.net) is fully open source, free, and runs completely in the browser. In January 2026, it shipped an upgraded AI Generate tool - a sparkle icon in the toolbar that sends your text prompt to a third-party AI service and returns a finished diagram. There's no cap on how many you can generate.

The tool supports many formats: UML, BPMN, AWS, Azure, ERD, and Mermaid-based diagrams. It also runs as a desktop app and integrates with Confluence, Google Drive, and OneDrive.

The tradeoff is privacy: the AI Generate tool requires cross-domain requests to external AI services. draw.io is transparent about this, but it means you shouldn't use the AI feature with confidential architecture details unless you've read the data handling terms of the underlying provider.

Best use case: Teams on a zero budget who still need solid diagrams. draw.io plus a LLM you already pay for (via the AI Generate tool) covers most use cases. For regulated industries, use the non-AI mode.

Whimsical - Best for Product and UX Teams

Whimsical is fast and clean for flowcharts, user journeys, and lightweight system overviews. The AI generation handles decision trees and simple process flows well, producing polished output without much prompt engineering.

The limitation is scope. Whimsical doesn't support ER diagrams, network diagrams, or org charts. If you're a product manager mapping out a user onboarding flow, it's excellent. If you're an engineer drawing a distributed system with message queues and replicas, you'll hit a wall quickly.

Whimsical pricing

The free tier's 100 AI actions is generous for getting started. The Pro plan at $10/user/month is competitive.

What it's not good at: Freeform use cases. Whimsical is designed around specific primitives - flowcharts, mind maps, wireframes. If you want to run a design sprint with 20 people and keep building that shared workspace over months, Miro is a better fit.

Collaborative whiteboard sessions are what Miro digitizes. The AI layer adds diagram generation on top of that canvas. Source: pexels.com

Miro - Best for Collaborative Workshops

Miro is a collaborative whiteboard that added AI diagram generation in 2023. Its real strength isn't the AI - it's that your produced diagram sits on an infinite canvas with sticky notes, user stories, and workshop output. If your team runs weekly design sprints or uses the board as the shared project document, the AI diagram feature is a nice addition to a tool you're already in.

The AI credit system is limiting. The free tier gives 10 shared credits per team per month. Starter plan users get 25 credits each. Business users get 50. Creating a single complex diagram with refinements can burn through credits quickly.

Miro pricing

The Business plan's 50 credits per member is the practical entry point for teams actively using AI features. That's not a lot if diagram generation is central to your workflow.

What it's not good at: Pure technical documentation. Miro's diagramming AI doesn't understand cloud provider components or create diagram-as-code. If you need your architecture documented in a way developers can diff, Eraser or Mermaid are better fits.

Lucidchart - Best for Enterprise Workflows

Lucidchart is the mature, enterprise-grade option. It's been the default diagramming tool at large companies for years, and the Confluence integration is tight. The AI layer generates diagrams from text prompts and handles process automation and workflow diagrams well.

The criticism that keeps coming up in user reviews is that the AI feels "added on rather than native." The core product is a canvas tool with extensive shape libraries and enterprise controls; the AI is a feature bolted on top of that. It works, but the experience isn't as fluid as Eraser or Mermaid.

Lucidchart pricing

For large organizations already paying for Lucid Suite or with Lucidchart as their diagramming standard, it makes sense to use the AI features rather than introduce a new tool. For a new team assessing options, Eraser or Mermaid Chart offer a better AI-native experience at similar pricing.

Cloudcraft - Specialist Pick for Cloud Infrastructure

Cloudcraft is in a separate category. It's not a general diagramming tool - it connects to your AWS or Azure account, scans your live infrastructure, and draws an accurate architecture diagram automatically. The result is a diagram that reflects your actual cloud topology, not what you intended to build six months ago.

The free plan supports single-user manual diagrams capped at 12x15 components. The Pro plan at $40.83/month (billed annually) unlocks live scanning, infinite drawing size, cost calculations, and the Cloudcraft API.

At $40.83/month, it's expensive for what it does. But for infrastructure teams auditing complex AWS environments or building runbooks, the alternative is drawing those diagrams manually - which takes hours and goes stale within weeks.

Most AI diagramming tools now offer IDE plugins, so diagrams can live with code rather than in a separate browser tab. Source: pexels.com

Full Comparison Table

Best Picks

For an engineering team building a new product: Start with Eraser's free plan. The 5 AI generations are enough to assess fit. If the team is writing design docs with diagrams, the Starter plan at $15/month is worth it.

For developers who already use Mermaid: Mermaid Chart Pro at $80/year is the obvious upgrade. You keep the workflow you have, add AI generation, and pay less than most alternatives.

For a product team without engineering involvement: Whimsical's Pro plan at $10/user/month handles flowcharts and UX flows cleanly. Don't use it for technical system design.

For an enterprise already on Atlassian/Confluence: Lucidchart's team plan integrates tightly with the existing stack. The AI quality gap matters less when the switching cost is high.

For cloud infrastructure documentation: Cloudcraft Pro if you're on AWS or Azure and the alternative is manual diagram maintenance. The live scan feature alone justifies the cost for infrastructure teams.

The tools I'd skip for pure diagramming work are the general whiteboard platforms with AI generation tacked on. Miro is excellent at what it does - collaborative workshops and asynchronous design reviews - but if your primary need is keeping architecture docs accurate and version-controlled, tools built for that specific job (Eraser, Mermaid) will serve you better.

The pair I'd recommend to most engineering teams is Eraser for documentation and draw.io for ad-hoc diagrams when you don't need the full Eraser workflow. That combination costs $15/month for the whole team and covers various diagram types. If you're committed to open source across the board, Mermaid's free tier plus draw.io covers 90% of use cases at no cost.
