AORUS RTX 5090 AI BOX Review: Desktop GPU Power via Thunderbolt 5

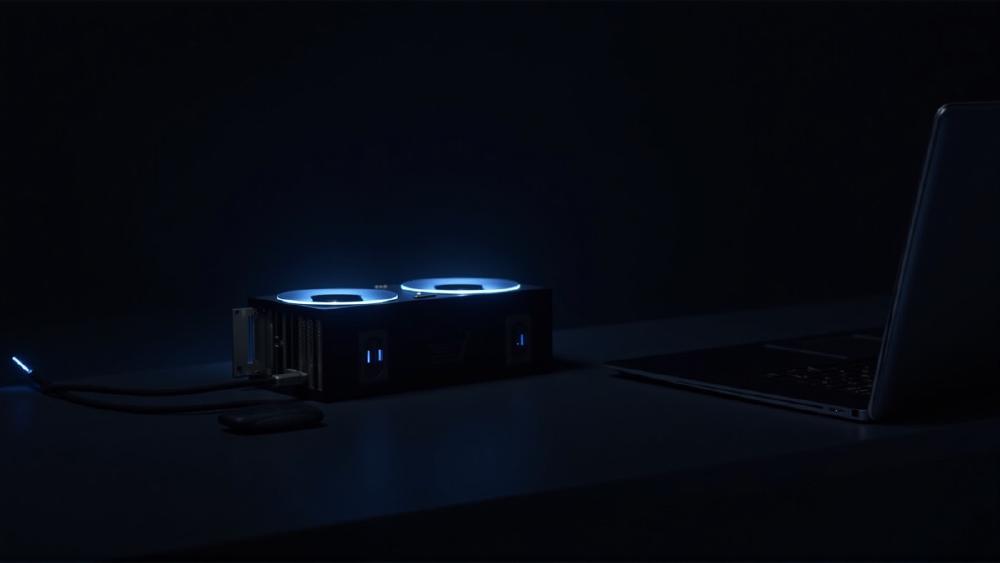

The pitch is simple: plug a single Thunderbolt 5 cable into your ultrabook and get a full desktop RTX 5090. The Gigabyte AORUS RTX 5090 AI BOX (model GV-N5090IXEB-32GD) delivers exactly that - a 575W Blackwell GPU with 32 GB of GDDR7, liquid-cooled inside a compact enclosure with its own 850W power supply. At $2,999, it costs roughly the same as a high-end standalone RTX 5090 card, except you also get the enclosure, cooling, PSU, and a pile of I/O ports. The catch, as always with eGPUs, is the cable between the box and your machine.

What's Inside

Gigabyte didn't cut corners on the spec sheet. This is the full GB202 desktop die, not a laptop variant:

The rear panel is well-equipped. Beyond the display outputs and USB ports, there's an Ethernet jack, a downstream Thunderbolt 5 port for daisy-chaining peripherals, and the upstream Thunderbolt 5 connection to your laptop. That single cable carries the PCIe data, 100W of power to charge your laptop, and DisplayPort passthrough. One cable, one connection, done.

The 240mm AIO liquid cooler uses a copper base plate, aluminum radiator, and two 120mm double ball bearing fans. It's a proven cooling approach, and Gigabyte needed it - 575W of GPU heat in a box this size demands more than air cooling.

The Thunderbolt 5 Reality Check

Here's the fundamental physics problem: a desktop RTX 5090 sits in a PCIe 5.0 x16 slot delivering 64 GB/s of bandwidth. Thunderbolt 5, despite its 80 Gbps headline number, delivers PCIe Gen4 x4 to the GPU - about 8 GB/s in practice. That's an 8x bandwidth reduction between the GPU and the host CPU.

Gigabyte quotes "up to 14% performance loss." Real-world testing by NotebookCheck tells a different story:

In native 4K rendering without upscaling, the AI BOX actually falls behind a desktop RTX 4090. That sounds damning, but context matters. Enable DLSS 4 with Multi Frame Generation and it pulls ahead by about 5%. More importantly, for the AI and compute workloads this box is marketed toward, the bottleneck behaves differently.

Where the Bottleneck Hurts Less

GPU compute workloads - inference, training, image generation - are less sensitive to the PCIe link than gaming. Games constantly shuttle textures, geometry, and frame data between CPU and GPU. AI inference loads the model weights once and then runs compute-bound operations on the GPU. The data flowing over Thunderbolt 5 during inference is mostly prompts in and tokens out - trivial bandwidth.

Gigabyte hasn't published AI-specific benchmarks for the AI BOX, but the desktop RTX 5090 numbers give a reasonable ceiling. With 32 GB of GDDR7 at 1,792 GB/s bandwidth, you can run models up to roughly 16B parameters at full precision or quantized models significantly larger. The VRAM is the constraint, not the Thunderbolt link.

AI and ML Workloads

32 GB of GDDR7 at 1,792 GB/s is serious hardware for local AI work. For context, that's 6.5x the memory bandwidth of the NVIDIA DGX Spark's 273 GB/s unified memory, though the Spark's 128 GB capacity lets it load much larger models.

What fits in 32 GB:

• 8B-14B models at full precision - Llama 3.1 8B, DeepSeek-R1 14B, Qwen3 14B run comfortably with room for KV cache
• 30B-70B models quantized - Llama 3.1 70B at Q4 quantization fits in 32 GB and runs at usable speeds
• Image generation - FLUX, Stable Diffusion XL, and similar models run without compromise
• Fine-tuning - LoRA and QLoRA on models up to 14B, full fine-tuning on smaller models

What doesn't:

• 70B+ at full precision - you'll need more VRAM or aggressive quantization
• 200B+ models - not happening on 32 GB regardless of quantization

The RTX 5090's desktop-class CUDA core count (21,760) means prefill speeds on smaller models will be extremely fast. For interactive chat with an 8B model, expect decode speeds well above 100 tokens per second. For batch inference workloads, the 5090 competes with data center GPUs costing multiples more.

ComfyUI, Automatic1111, and other image generation tools run natively. Gigabyte even publishes a ComfyUI setup guide for the AI BOX. With 32 GB of VRAM, you can run FLUX.1-dev at full resolution without the fp8 quantization that 12-16 GB cards require.

Build Quality and Thermals

The enclosure is well-built. The metal chassis feels solid, the liquid cooling system is properly integrated, and the overall fit and finish suggests Gigabyte took the industrial design seriously. At 5.4 kg, it's not something you'll throw in a backpack, but it sits nicely on a desk.

Thermals are a mixed picture. The 240mm AIO keeps the GPU at manageable temperatures during gaming and bursty compute workloads. Under sustained stress testing, NotebookCheck recorded GPU temperatures up to 81.5C with the cover on, dropping to 75C with the cover removed.

The bigger concern is the enclosure itself. The surface temperature hits approximately 60C under sustained load - warm enough that you'll notice if you touch it. Gigabyte recommends a well-ventilated environment, and they're not being cautious for the sake of it.

Acoustically, the AI BOX is quiet at idle but ramps to 53 dB under load. That's clearly audible and louder than most desktop GPUs in a full tower case. The liquid cooling handles the heat, but the 120mm fans need to work hard in a compact space.

Software Compatibility

The AI BOX works with any laptop or desktop that has a Thunderbolt 5 or USB4 port. Windows 11 25H2 or later is recommended, with NVIDIA driver 25.08.21.01 or newer.

On the software side, it's a standard NVIDIA GPU. Full CUDA support, NVIDIA Studio drivers for creative applications, and Gigabyte's Control Center (GCC) utility for monitoring clocks, temperatures, and fan profiles.

Linux support is the question mark. Thunderbolt eGPU support in Linux exists but remains less polished than on Windows. The NVIDIA driver side (570.xx+) works fine, but the Thunderbolt hotplug and display management can require manual configuration depending on your distribution. If you're planning to run this on Linux, check the ArchWiki eGPU documentation first and manage your expectations for plug-and-play behavior.

Who Should Buy This

The AORUS RTX 5090 AI BOX makes sense for a specific user: someone who works primarily on a laptop, needs desktop-class GPU compute for AI/ML workloads or creative production, and doesn't want to maintain a separate desktop machine.

It does not make sense if you can build a desktop. A full tower with an RTX 5090 delivers 18-27% more performance, costs a similar total, and avoids the Thunderbolt bottleneck entirely. The AI BOX's value proposition is portability and convenience, not raw performance per dollar.

The $2,999 price deserves context. A standalone RTX 5090 card costs $1,999. The AI BOX adds an 850W PSU, 240mm liquid cooling, a full enclosure with I/O hub, and Thunderbolt 5 connectivity for an extra $1,000. That's a reasonable premium for the integration.

Strengths

• Full desktop RTX 5090 with 32 GB GDDR7 - the most powerful eGPU available
• 1,792 GB/s memory bandwidth crushes inference workloads on models up to 16B
• Single Thunderbolt 5 cable handles data, display, and 100W laptop charging
• 240mm AIO liquid cooling keeps GPU temperatures in check
• Comprehensive I/O hub: Ethernet, USB ports, four display outputs, TB5 daisy-chain
• Works with any Thunderbolt 5 or USB4 laptop - no proprietary connectors
• $2,999 is competitive when you factor in the PSU, cooling, and enclosure

Weaknesses

• Thunderbolt 5 bottleneck costs 18-27% versus a PCIe 5.0 x16 desktop slot
• In native 4K gaming, slower than a desktop RTX 4090 (DLSS 4 recovers this)
• 53 dB under load is louder than ideal for a desk setup
• Enclosure surface hits 60C - gets noticeably warm
• 5.4 kg is portable relative to a desktop, but not truly portable
• Linux eGPU support remains less polished than Windows
• 32 GB VRAM is excellent but can't match unified memory solutions for very large models

Verdict: 7.5/10

The AORUS RTX 5090 AI BOX is the best eGPU you can buy, and for AI/ML workloads specifically, the Thunderbolt 5 bottleneck matters less than you'd think. 32 GB of GDDR7 at 1,792 GB/s lets you run inference, fine-tune models, generate images, and develop CUDA applications at speeds that no laptop GPU can touch. The single-cable setup with 100W charging is genuinely convenient, and the build quality is solid.

But the laws of physics apply. You're paying desktop GPU prices for 75-82% of desktop GPU performance, plus the noise and heat of cramming 575W into a compact enclosure. If you have room for a desktop, build a desktop. If your workflow demands a laptop during the day and a GPU workstation at night, the AI BOX is the best bridge between those two worlds.
